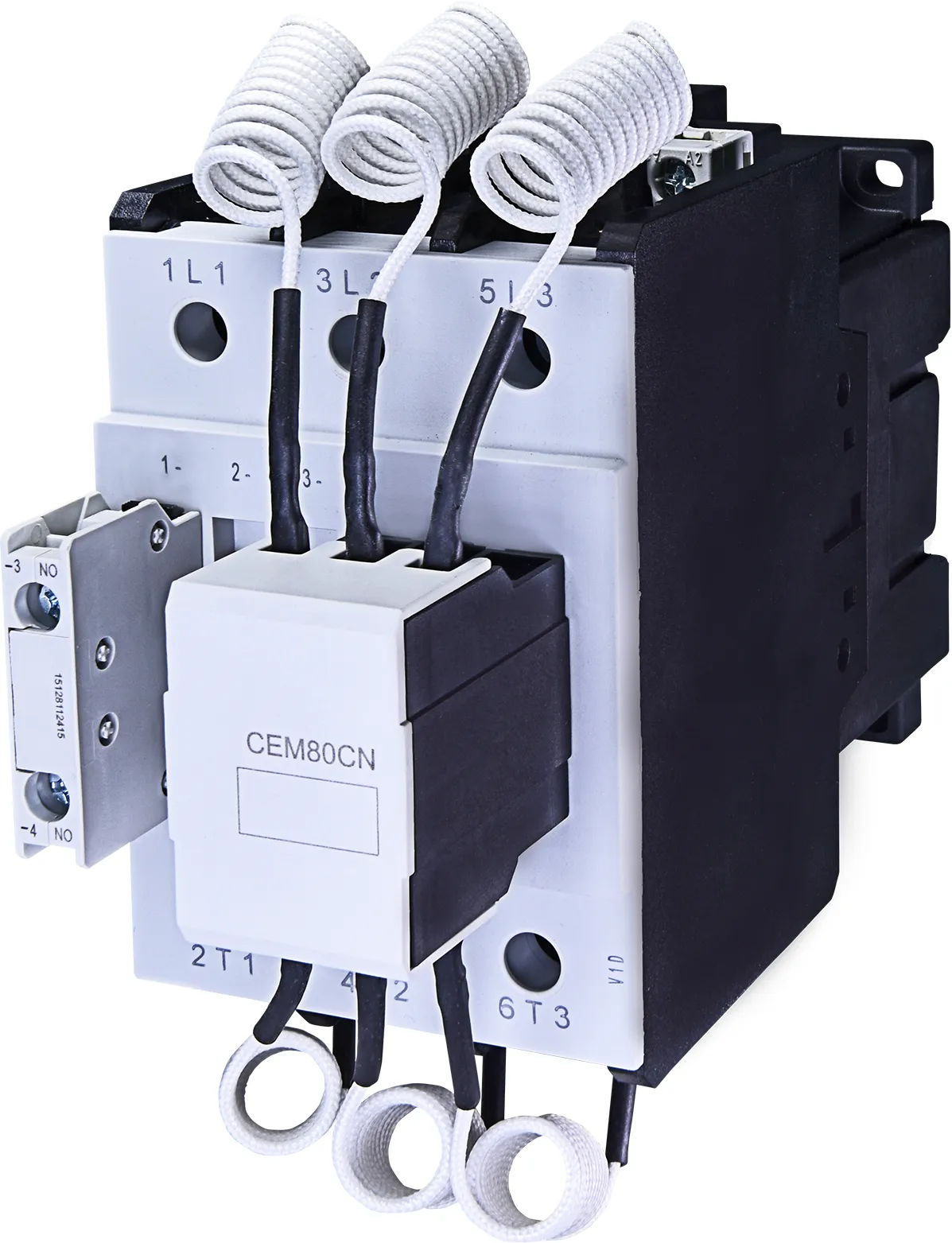

Kondesatora kontaktori CEM80CN.10-230V-50Hz 004650140
Specifikācijas
- ETI kods:
- 004650140
- Apraksts:
- CEM80CN.10-230V-50Hz
- Klases nosaukums:
- Kondesatora kontaktori
- Aux NO/NC kontaktu skaits:
- 1
- Novērtēta oper. Jauda 400V (kVar):
- 61
- Spoles spriegums Uc (V):
- 230
Dokumenti
Loģistikas dati
Produkts
- Muitas tarifs
- 85364900
- logis_net_width
- 75 mm
- logis_net_height
- 185 mm
- logis_net_depth
- 167 mm
2. līmeņa iepakojums
- Iepakojuma daudzums
- 1
- Iepakojuma EAN
- 7909158959785
- Iepakojuma svars
- 1.605 kg
- Paletes daudzums
- 500
ETIM klasifikācija
- Klasifikācija
- EC000066
- Klases nosaukums
- Power contactor, AC switching
- Rated control supply voltage AC 50 Hz
- 415…415V
- Rated control supply voltage AC 60 Hz
- 230…230V
- Rated operation current Ie at AC-1, 400 V
- 110A
- Rated operation current Ie at AC-3, 400 V
- 80A
- Rated operation power at AC-3, 400 V
- 37kW
- Number of auxiliary contacts as normally open contact
- 1
Programmatūra un draiveri
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
CEM80CN.10-230V-50Hz
