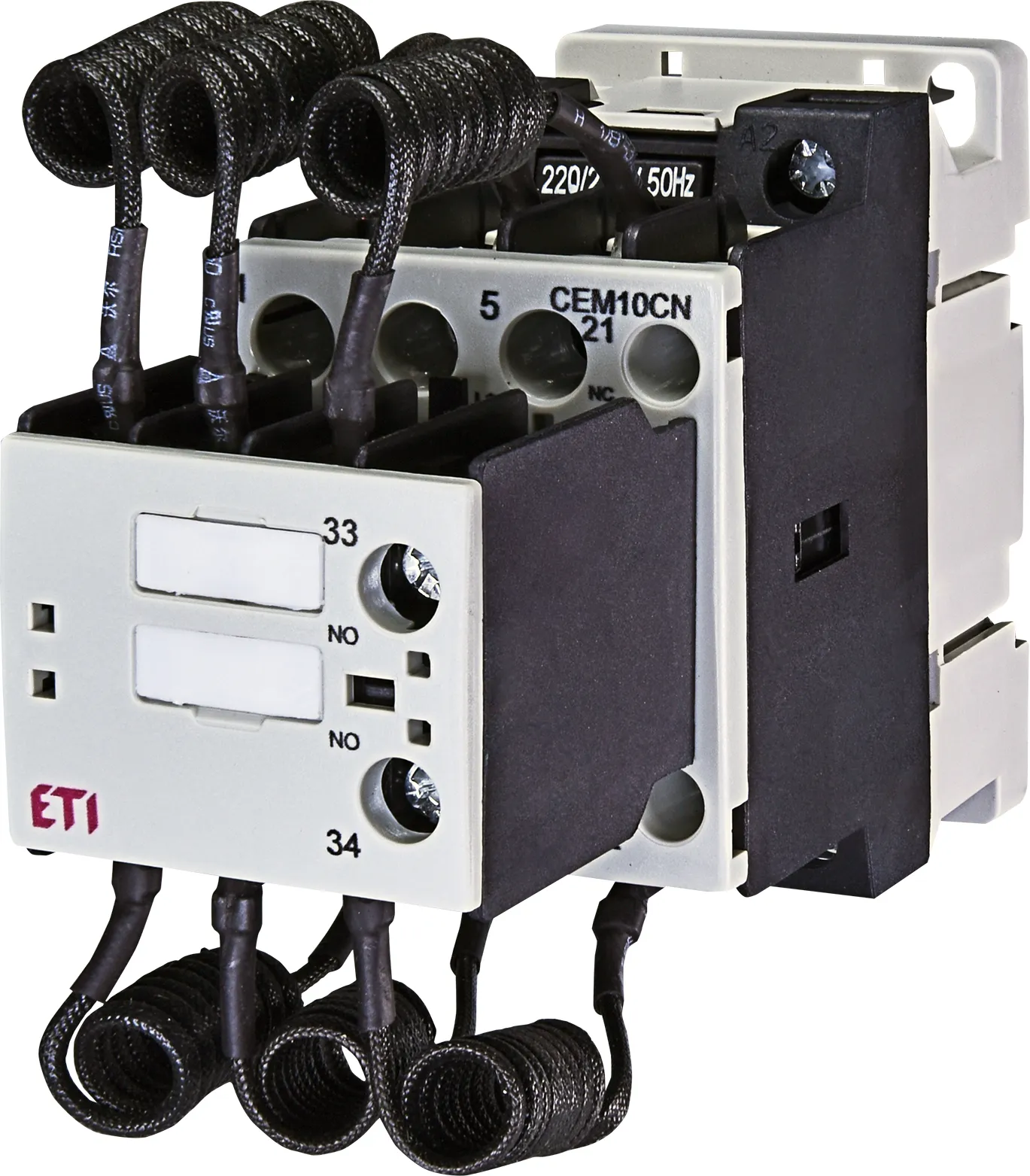

Kondesatora kontaktori CEM10CN.11-230V-50Hz 004643801
Specifikācijas
- ETI kods:
- 004643801
- Apraksts:
- CEM10CN.11-230V-50Hz
- Klases nosaukums:
- Kondesatora kontaktori
- Aux NO/NC kontaktu skaits:
- 1
- Aux NO/NC kontaktu skaits:
- 1
- Novērtēta oper. Jauda 400V (kVar):
- 10
- Spoles spriegums Uc (V):
- 230
Dokumenti
Loģistikas dati
Produkts
- Muitas tarifs
- 85364900
- logis_net_width
- 45 mm
- logis_net_height
- 101 mm
- logis_net_depth
- 108 mm
1. līmeņa iepakojums
- Daudzums pamata iepakojumā
- 1
- Pamata iepakojums EAN
- 3838895649694
- Pamata iepakojuma svars
- 0.345 kg
2. līmeņa iepakojums
- Iepakojuma daudzums
- 32
- Iepakojuma EAN
- 3838895649700
- Iepakojuma svars
- 12.8 kg
- Paletes daudzums
- 608
ETIM klasifikācija
- Klasifikācija
- EC001079
- Klases nosaukums
- Capacitor contactor
- Rated control supply voltage AC 50 Hz
- 230…230V
- Voltage type for actuating
- AC
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Type of electrical connection of main circuit
- Screw connection
- Number of normally open contacts as main contact
- 3
- Rated blind power at 400 V, 50 Hz
- 10kvar
